LX76HF-IM-2in1 Thermoformer with Auto hole-punch

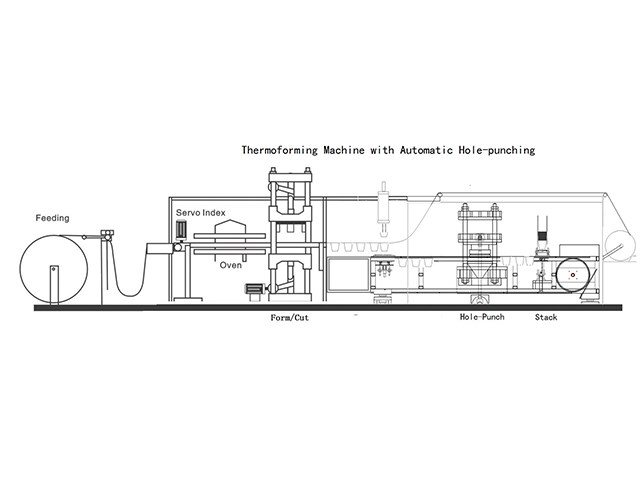

IM-HP model is a trim-in-place type thermoforming machine with rules steel knife for automatically In-line hole-punching for tray and container and clamshell . Form+Cut+Hole-Punch+ Auto-Stacker

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】
【Next Products】
Description

IM-HP Thermoformer with Auto hole-punch

BRIEF

IM-HP model is a trim-in-place type thermoforming machine with rules steel knife for automatically In-line hole-punching for tray and container and clamshell . Form+Cut+Hole-Punch+ Auto-Stacker

Design Feature

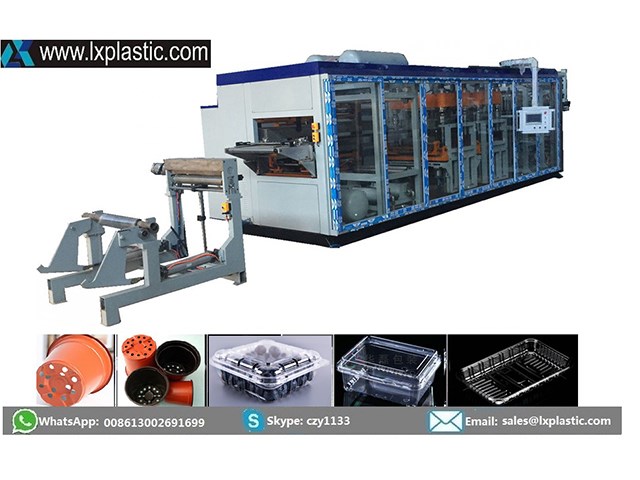

Universal machine for making flower pot, cup, tray and container with automatic hole-punching

• cut-in-place with steel-rule-knife for PP PET PS PVC etc. material

• Automatic stacking system

• Cut-in place for clamshell, container and tray with rolled edge (turn-down lip)

• cut-in-place technology bring a neat and identical trimming(cutting)

Plug assistant for deep forming draw

Specification
LX3014IM-HP

Mould Area

760*460mm Max.

Depth of Draw under sheet

180 mm Max

Depth of Draw above sheet

5mm Max.

Hole-Punch Stroke

180mm Max.

Hole-Punch Area

720*360mmMax.

Suitable material

PET PS PVC PP (BOPS available extra cost)

Sheet Width

580- 780 mm

Material Thickness Range

0.3-2mm

Material Roll Diameter

1000 Max

Dry run Speed

30cycles/min Max.
