Machine Video :
please add whatsapp :+86 13002691699 for more vidoe and advice

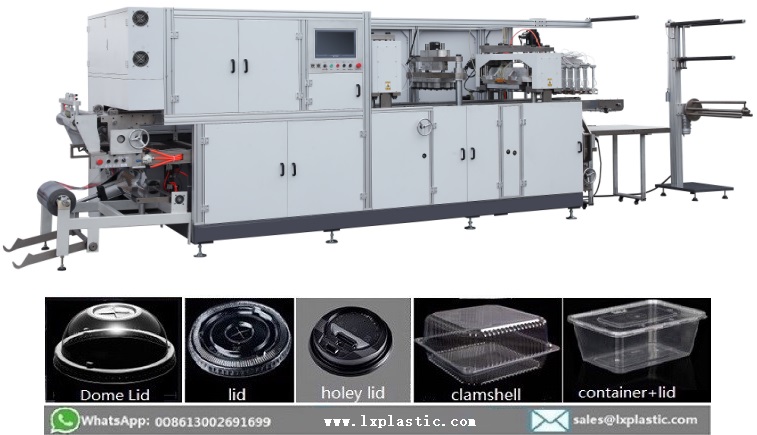

Design Feature

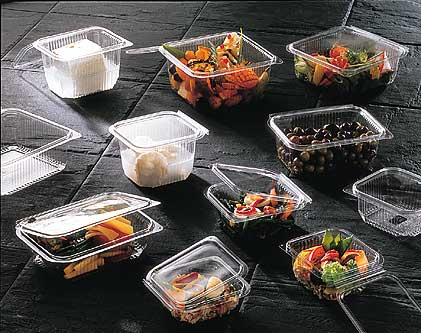

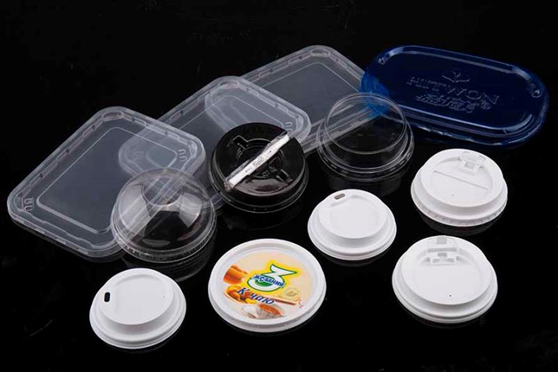

1. Form+Hole-Punch+Trim/Stack for lid, tray,container and clamshell with pp, ps,pet and pvc.
2. In-line bagging system is available
3.Touch screen and programmable PLC control
4. Precise index accuracy by servo motor
5. Retractable, independently operated upper and lower ovens moving forwards and backwards for more even temperature distribution
6.Cam-controlled drive technology ensures 100% precise repetition of each cycle
7. Tool with punch die and steel-rule are suitable
8. quick tool change from side
|
Model |
TF-5535HF 3in1/4in1 |
|
Form Area |
550*350mmMax. |
|
Forming Depth |
80mm (under sheet) , 80mm (above sheet) |
|
Trim Tolerance |
_+ (0.5-0.6)mm for PP. _+(0.3-0.5)mm for pet ps |
|
Speed |
40Cycle/min Max. |
|
Suitable Sheet |
PP PS PET etc. |
|
Max.Sheet Width |
350-570MM |
|
Sheet Thickness |
0.2-1.5mm |
|
Power Supply |
380V 50Hz 3Ph.(others at request) |
|
Air Pressure |
0.7Mpa |
|
Heat Power |
50kw |
|
Motor power |
15kw |
|
Air Consumption |
2000liters |
|
Cooling Water |
10 Liters/min @ 15° - 20° C |
|
Dimension |
5500*1750*2100 (mm) |
|
Weight |
4600kg |
