Tirm-in-place with punch-die for making plastic disposable cup, container, lids, dish ,tray,clamshell etc.from thermoformable plastic thin sheet of pp ,pet,ps and pvc. by thermoforming process
 Skype Online
|
E-mail Us
|
Bookmark this
|
 PDF Download
|
| 【Prev Products】 | |
| 【Next Products】 | |

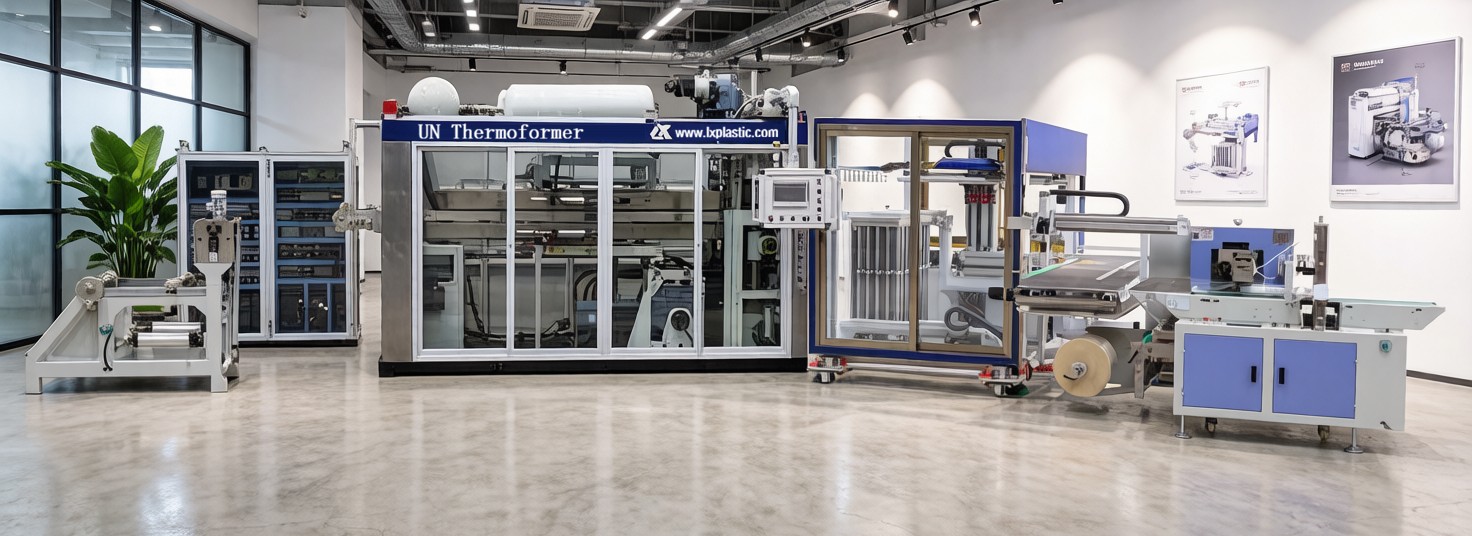

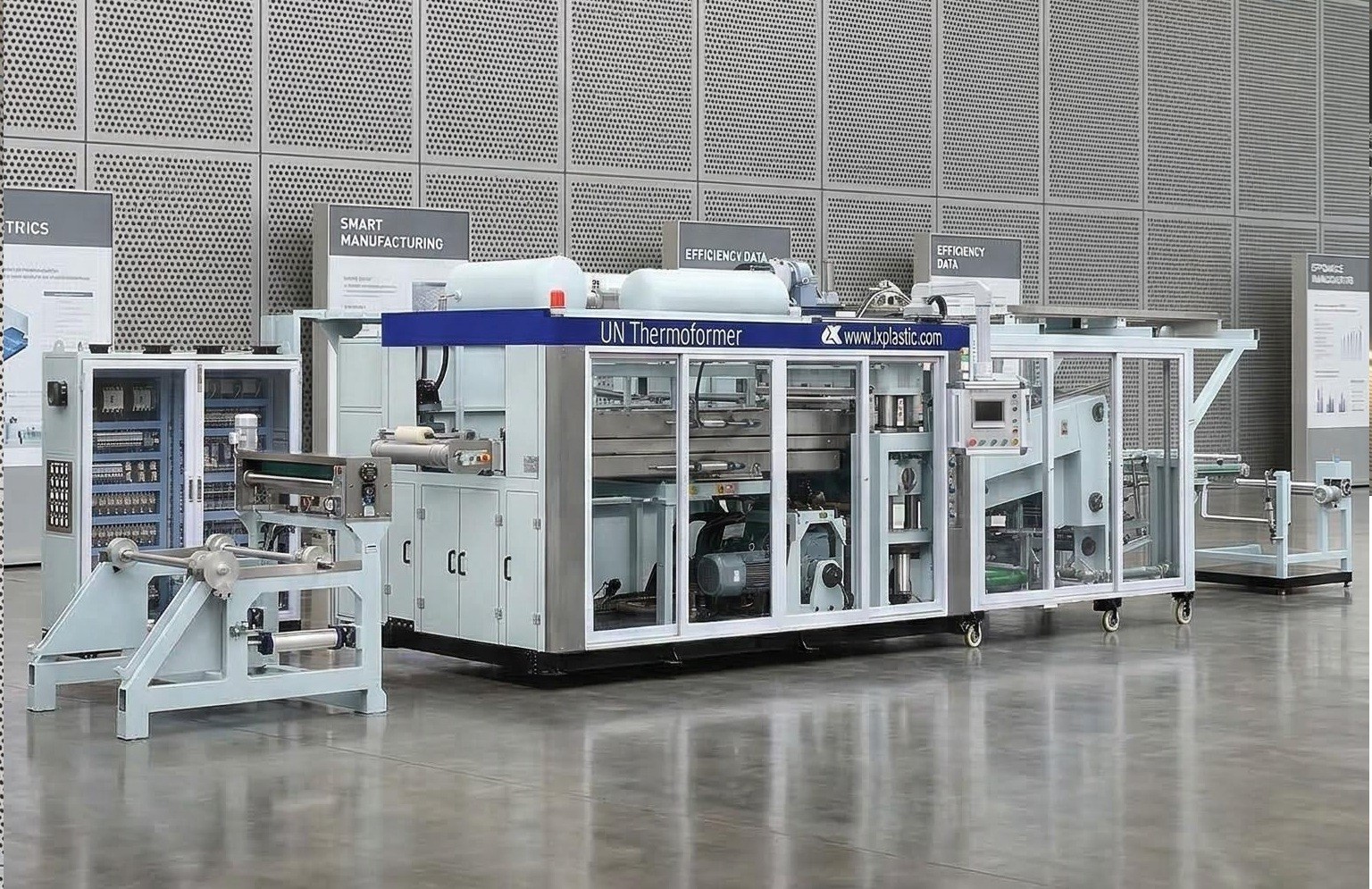

Universal-Thermoforming-Machine-for-cup,tray,container,lid,dish
Main Technical Data/参数
|
Model |
UN7542 |
UN7652 |
UN8556 |
|
Forming area |
750*420mm |
760*520mm |
850*560mm |
|
Depth of draw |
150mm/ or more |
150mm /or more |
150mm/or more |
|
Dry Run Speed |
35Cycle/min |
35Cycle/min |
35Cycle/min |
|
Suitable Sheet |
PP PS PET etc. |
PP PS PET etc. |
PP PS PET etc. |
|
Sheet Thickness |
0.3-2.5mm |
0.3-2.5mm |
0.3-2.5mm |
|
Production |
cup, container, lids, dish ,tray,bowl ,clamshell |
||
|
Suitable material |
PP ,PS,PET ,PVC sheet |
||

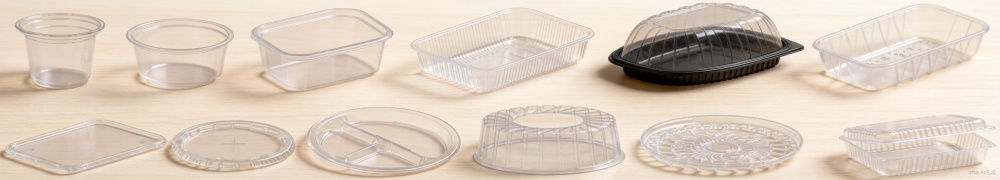

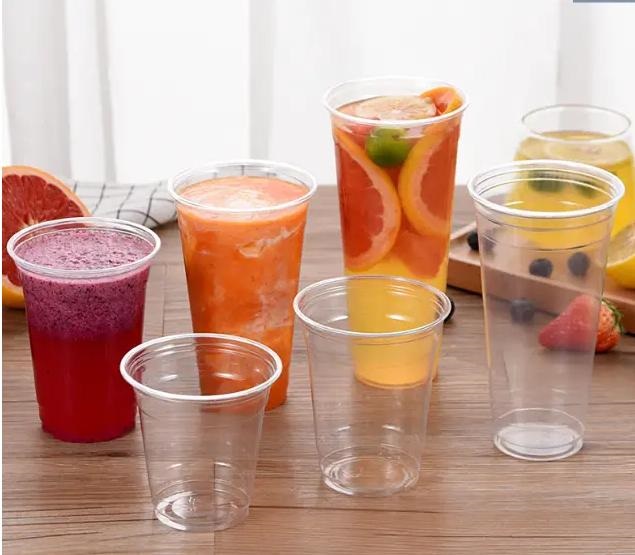

What can it make/功能

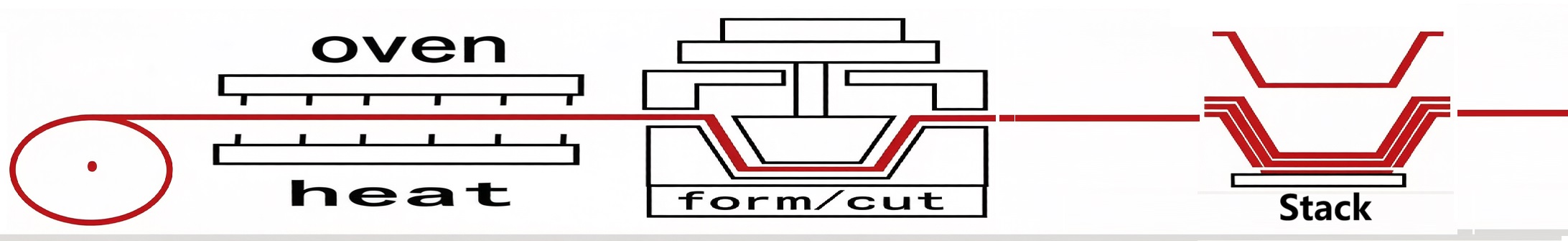

How it works /工作原理
How it works

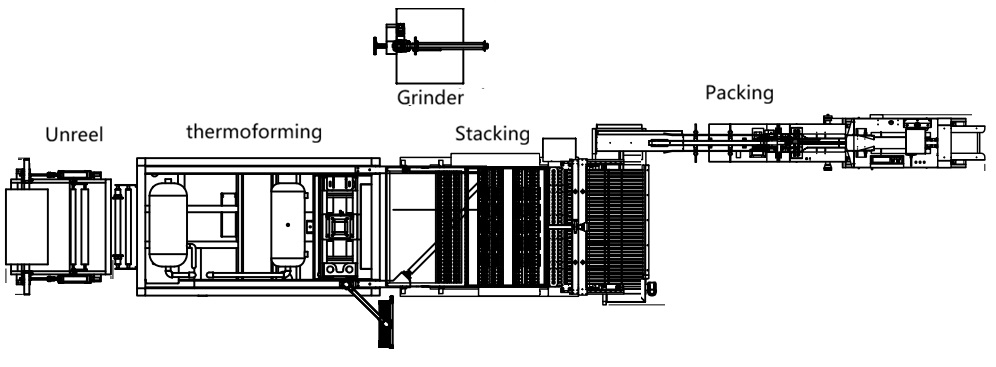

How to work with cup stack&pack system(option)
Option&Auxiliary/辅机
|
Belt type cup stacker |
|
Robot-Arm Cup Stacker |
|
Screen type Cup Stacker |
|
in-line cup packing&bagging system |
|
PP Pre-heater for thick sheet |
|
In-line Crusher with cyclone |
1. Tirm-in-place with punch-die for 100% identical product
2. Servo form&cut ，Servo plug ，Servo Index
3. Touch screen and programmable PLC control
4. Heating with oven of infra ceramic heaters
4. PID temperature control ensures precise temperature accuracy and easy operation
5. Little maintenance effort required
6.Most of Components are from multi-national suppliers assures a reliability and worldwide compatibility
7. Auto In-line hole-punch available
8.in-line grinder with cyclone and dust collection available
