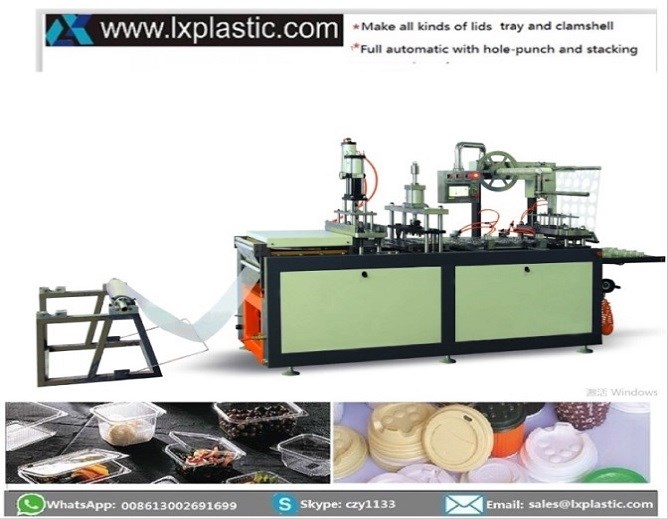

Nv500 Min 3in1 thermoforming machine with steel-rule-knife

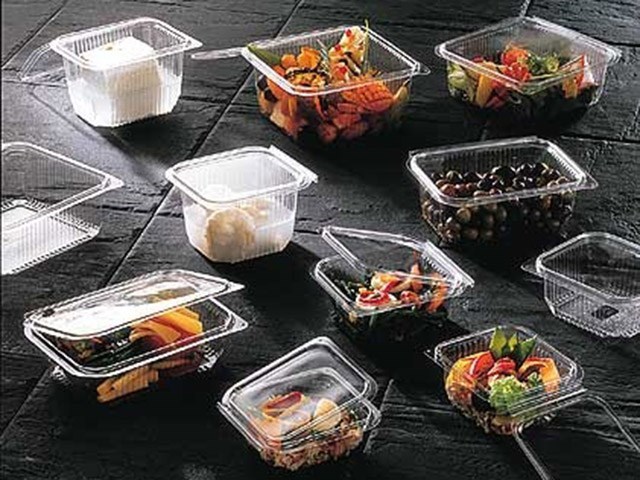

It is a small contact heat thermoforming machine which performing forming, hole-punch, cut&stack in 3 separate station. it is perfect for lid ,tray and clamshell with material of PET PS PVC PLA etc.

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】
【Next Products】
Description

Device Video:

Nv500S Min 3in1 video 1 , 2 , 3 , 4,5,6,7,8,9,10,1112,13

Nv500PLA Min 4in1 video 1

Brief
It is a small contact heat thermoforming machine which performing forming, hole-punch, cut&stack in 3 separate station. it is perfect for lid ,tray and clamshell with material of PET PS PVC PLA etc.
Design Feature

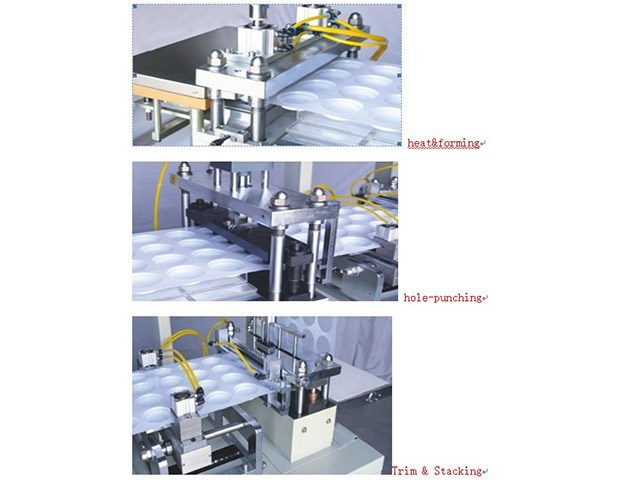

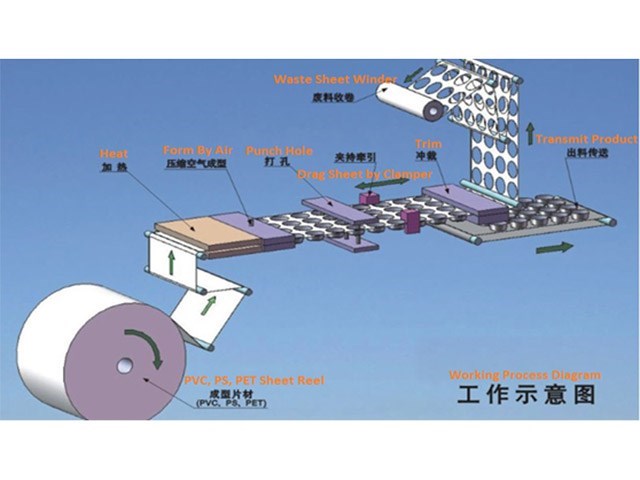

1. Performs forming press, hole puncing press , trim press ,counting and stacking ,conveying one automatic cycle.
2. Compact design requires min. floor space
3. PLC control easy to use
4. Precise index accuracy utilizing Servo drive system, minimizing plastic scrap
5. Contact heat minimizing heat power consumption and scrap rate

6. index without chains minimizing the scrap of film.

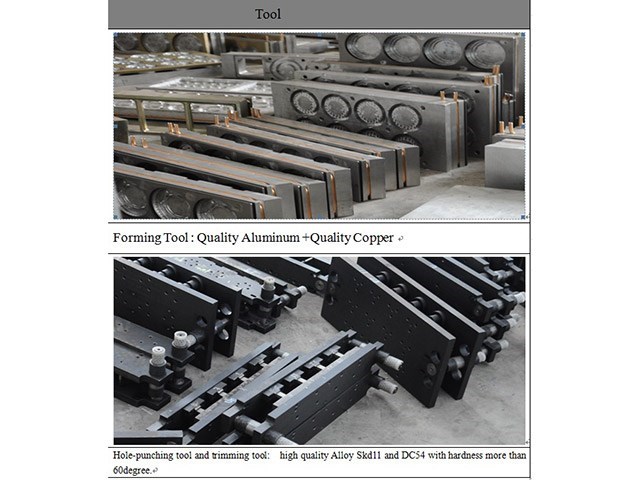

7. Steel-rule-knife and punch die are available for trimming

8. machine can process PLA of heatproof.


Specition
Forming area 480*320mm
female draw 52mm Max.
Male draw 6mm Max.
Speed 18-26Cycle/min
Suitable Sheet PS PET PVC PLA
Sheet Thickness 0.15-0.55mm
Sheet Width 150-430mm
Power Supply 380V 50HZ
Heat Power 4kw
Power consumption 6kw/hour
Air Consumption 0.6-0.8m³/min
Air Pressure 0.4-0.7Mpa
Cooling Water 0.3m3/h( @ 15° - 20° C
Water Consumption 60 liters/hr
Dimention 2760×950×1720mm packing :3020×1150×2220mm
Weight 2000KG
