LX800 PP pre-heater
{-stralt-}
Description

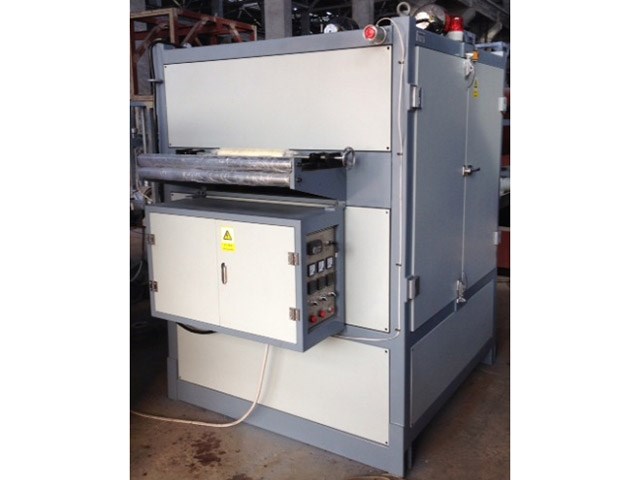

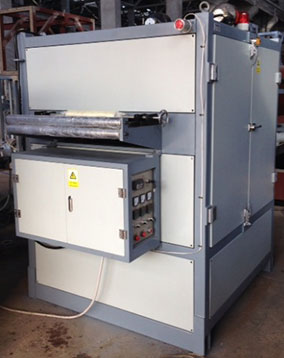

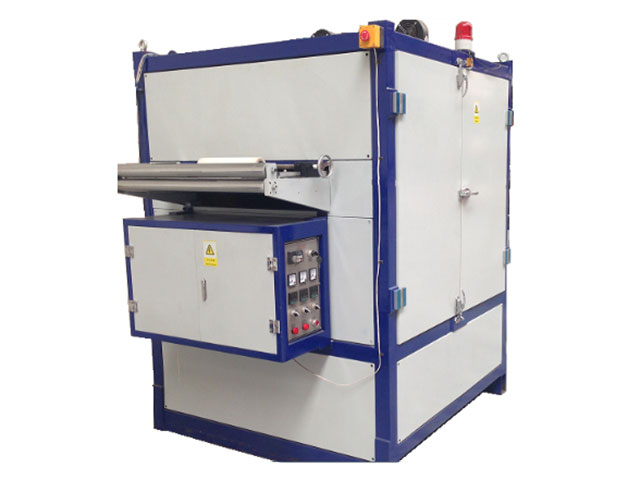

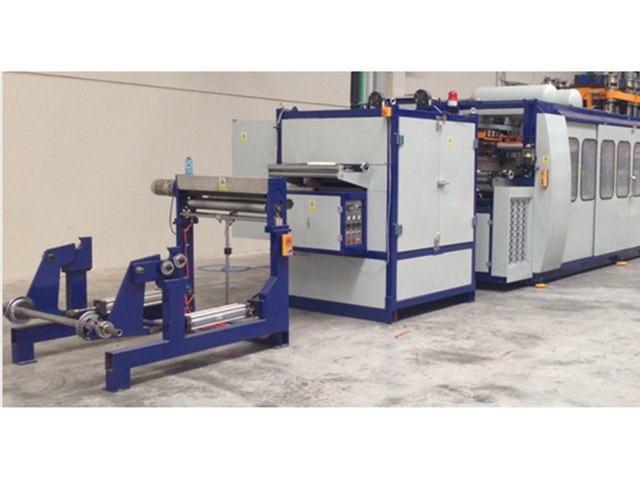

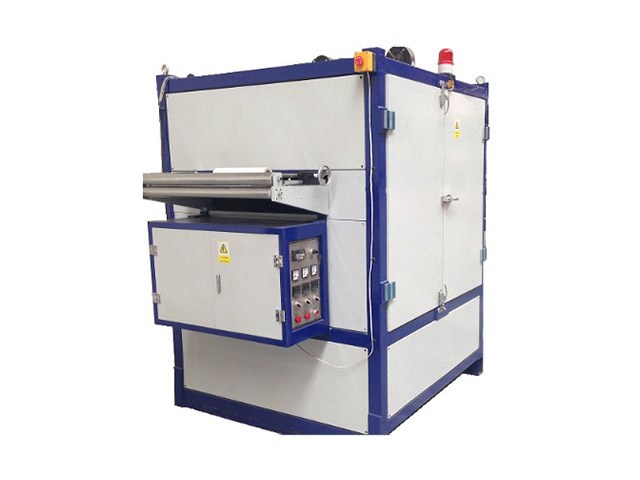

LX850 Roller Pre-heater

Specification

Sheet width

Max. 850mm ,others at requirement

Sheet thickness

0.3-25mm

Heating power of each heat roller

35kw/roller

Number of heat roller

2 rollers , others at requirement

Motor

3.7kw

Temperature for heat roller

100oC

Diameter of roller

600mm

Plastic film

pp PS PET

Power Supply

380V ,

Power Consumption

10 Kilowatts/hr

Frequency inveter

3.7kw

Machine Dimensions

1000mm*900mm*1800mm

Machine Weight

900kg


Design Feature

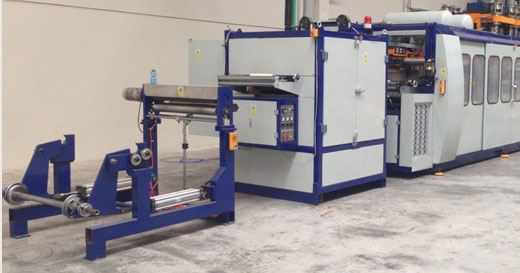

Pre-heating thick PP PS etc. sheet to improve the quality of finished products

Insulated cabinet, contact heat ,saving power comsuption up to 10%-15%

Wave-free and even clinging of sheet to heating rollers

Heating Roller with Individual temperature setting

No sticking of sheet to heating roller

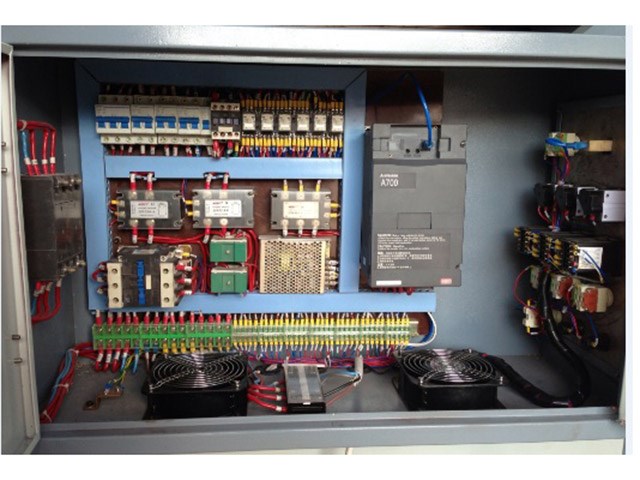

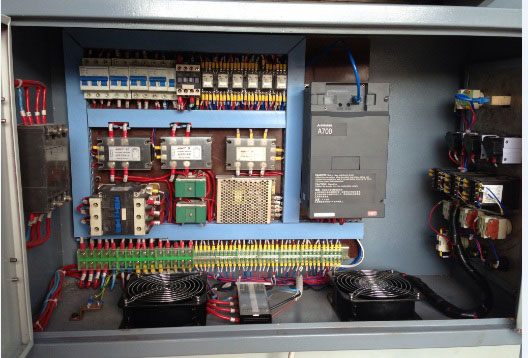

Frequency inverter for roller drive

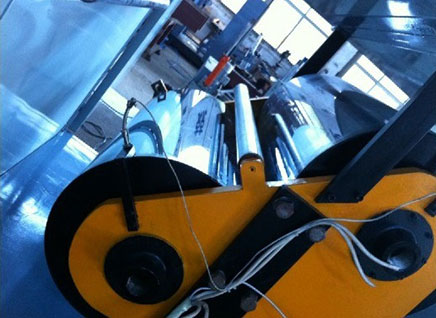

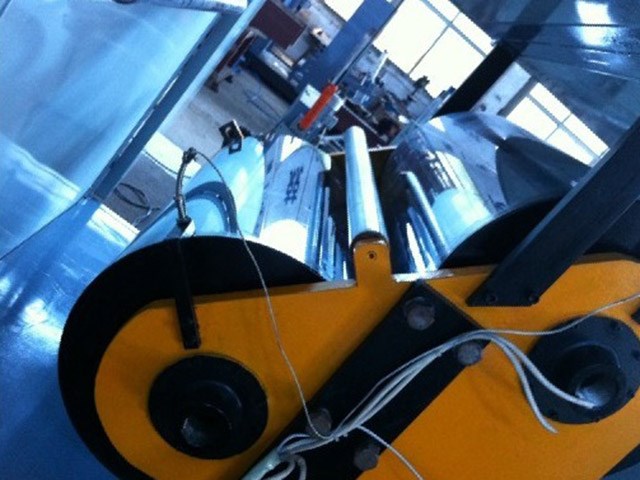

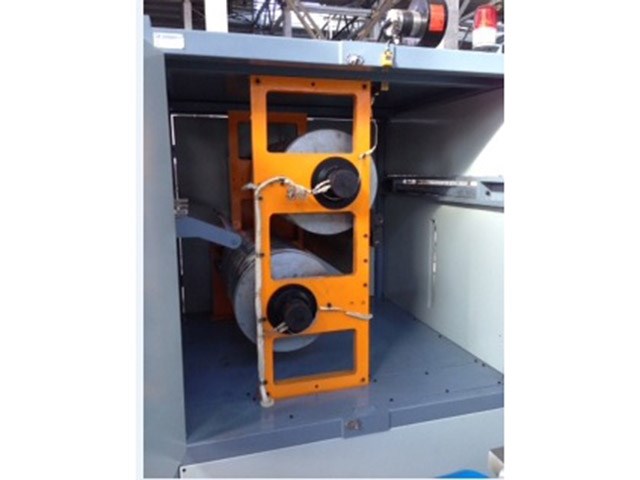

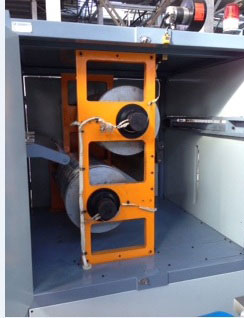

Conduct heating through oil in rollers

Better forming result and even material heating especial for PP ,

Improving production Speed of pp production







All information is subject to change and our confirmation
LX Plastic Machinery Ltd.
LianXing industrial zone, No.175, RUIAN.CHINA. city zip 325200
