Produce Disposable cups ,lids, dish, containers and trays with round ,square and rectangular or other shapes.
 Skype Online
|
E-mail Us
|
Bookmark this
|
 PDF Download
|
| 【Prev Products】 | |
| 【Next Products】 | |
Machine Video: 1 , 2,3,4，5，6，7，8

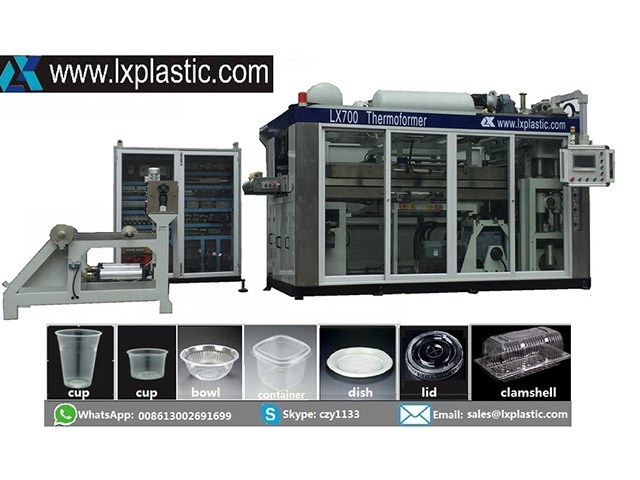

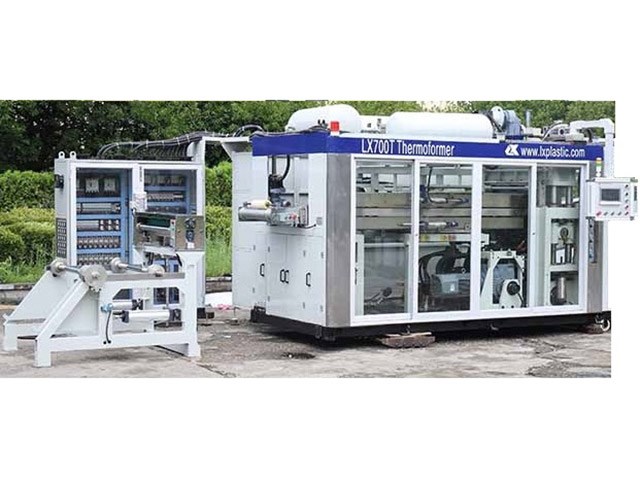

1. Produce Disposable cups ,lids, dish, containers and trays with round ,square and rectangular or other shapes.
2 Servo plug
3. Forming station driven by servo system
4.Servo Index
5. Touch screen and programmable PLC control
6. Retractable, independently operated upper and lower ovens moving forwards and backwards for more even temperature distribution
7. PID temperature control ensures precise temperature accuracy and easy operation
8. Robust design ,
9. Little maintenance effort required
10.Most of Components are from multi-national suppliers assures a reliability and worldwide compatibility
16. Auto In-line hole-punch available
|
Model |
LX76UN-IM 2in1 LX78UN-IM 2in1 |
|
Forming area |
760*380mm 780*450mm |
|
Stoke |
210mm (250mm at request) |
|
Dry Run Speed |
30Cycle/min |
|
Suitable Sheet |
PP PS PET etc. |
|
Sheet Width |
400-760mm maximum |
|
Sheet Thickness |
0.3-2.0mm |
|
Power Supply |
3-N AC380V±15V (change is available on extra change ) |
|
Heating Oven |
83kw |
|
Air Pressure |
0.7Mpa |
|
Air Consumption |
2000liters |
|
Cooling Water |
10 Liters/min @ 15° - 20° C |
|
Dimension |
3800mm*1400mm*2350mm |
|
Weight |
3000kg |
If you have any enquiry about quotation or cooperation,please feel free to email us at sales@lxplastic.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
